HTNX Compact

HT Control HTNX Compact

Temperature controller for refrigerated cabinets with alphanumeric LCD display and user interface menus in 5 languages.

Functional

  • Defrost management:
    – a time machine;
    – a compressor with storage time;
    – Smart (automatically detects the presence of frost);
    – part-time;
    – manuals.
  • Registration HACCP alarms.
  • Capacitor Control.
  • Control humidity choking fans.
  • InfoTest: functional test procedure.
  • Listing failures, door openings and defrosting.
  • Programming with IR transceiver.

Data Logger Series
The controller performs the recording of two channels of temperature. The memory capacity is likely to record every 20 minutes an entrance for about four months. Using the optional infrared transceiver Pocket Data you can receive and retransmit the data to a PC through dedicated serial interface. The values of temperature and humidity can be printed in graphical form through the oversight program for PC ColdMaster.

Downloads:

To download the specifications for this product, log in or register.
Register

Technical specifications:

Keyboard tab

  • Dimensions L162xH76xP19 mm
  • Interface with 16×2 LCD display and 6-button keypad
  • On / Off-aux-menu-enter-up-down

Remote tab

  • Keyboard shortcut to Flat Cable 10 cm
  • Dimensions L155xH65xP40 mm
  • Power 12 Vac – 6VA

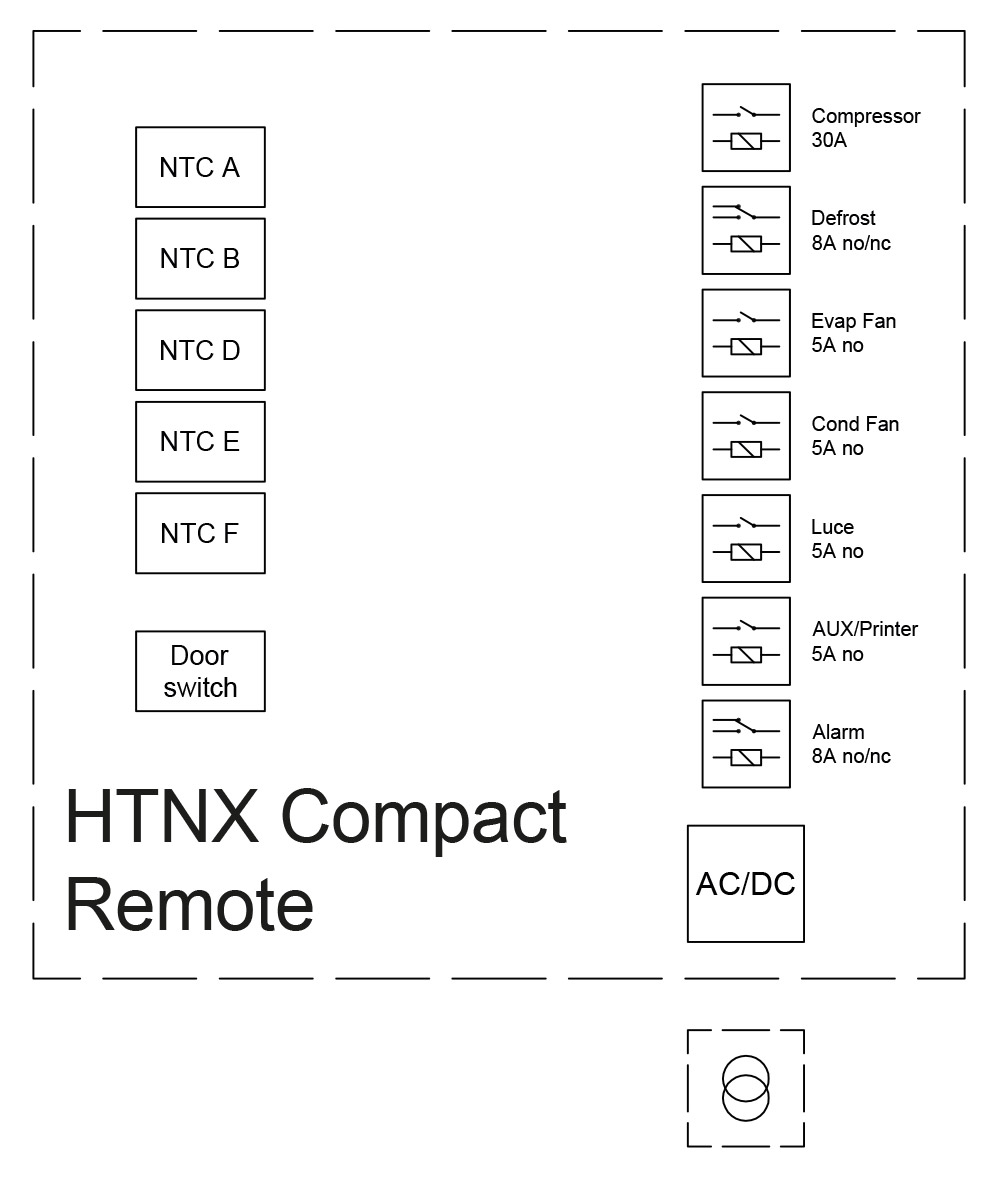

  • Inputs: 4 NTC probes – 2 digital port switch / pressure
  • Outputs: 1×30A 2HP single phase – 5×5A – 1×8A

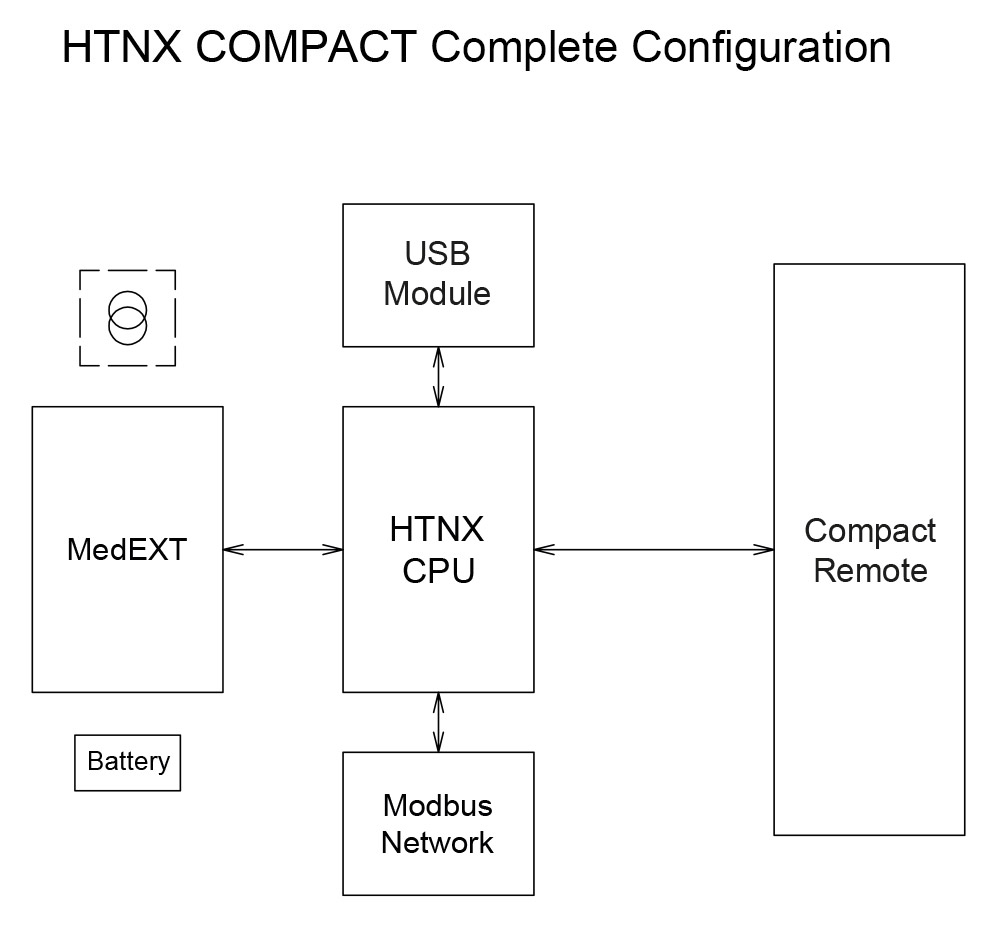

HTNX Compact complete configuration

HTNX CPU

MedEXT

HTNX Compact Remote
